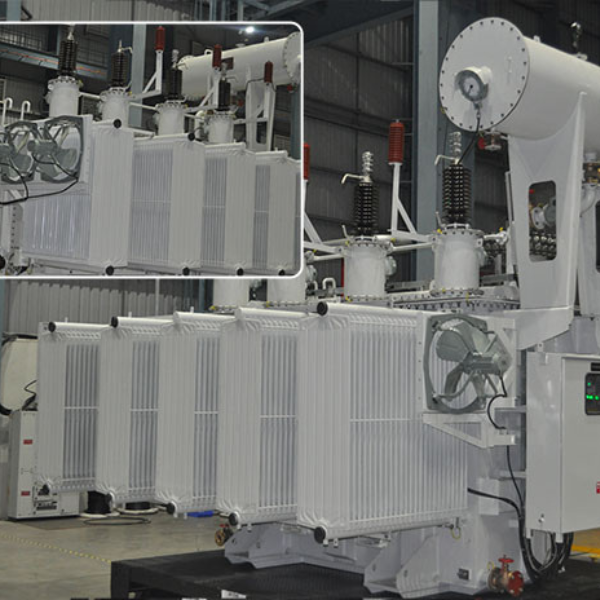

Generator Transformers. Engineered at the Point of Generation.
Step-up transformers designed specifically for power generation applications — connecting generators to the grid at the correct voltage class, with the reliability and documentation that power plant operators and utilities demand.
From Generator Bus to Grid — Without Compromise.
A generator transformer sits at the most critical electrical interface in a power plant — the point where generation voltage is stepped up to transmission voltage for grid injection. It operates continuously at full load for the duration of every generating cycle. Its failure is not an operational inconvenience — it is a plant outage.
KLR Generator Transformers are custom-engineered to the specific generator rating, power factor, and grid interface voltage of each project. The design accounts for the unique electrical characteristics of generator output — including sub-transient reactance requirements, fault current levels, and the step-up ratio from generator terminal voltage to HV transmission class. Every unit is type-tested, fully documented, and commissioned with direct KLR support.
Technical Specifications
- Capacity range: Up to 100 MVA (higher ratings on enquiry)
- Voltage class: Up to 132 kV (HV side); generator terminal voltage on LV side
- Application type: Unit transformer (generator step-up); station auxiliary transformer; unit-auxiliary transformer
- Cooling: ONAN, ONAF, OFAF, ODAF — to thermal duty requirement
- Core: CRGO step-lap lamination — low no-load loss design
- Insulation: Oil-impregnated paper, Vapour Phase Dried (VPD)
- Tap changer: OLTC standard — on-load voltage regulation for grid voltage control during generation
- Standards: IS 2026, IEC 60076 — type-tested with full documented test reports
- Testing: Full routine tests; type tests; partial discharge; impulse test available; third-party witnessed testing on request
Key Features
- Custom-engineered to generator specification — designed for the specific machine rating, power factor, short-circuit impedance, and grid interconnection requirements of each project
- OLTC for continuous voltage regulation — maintains grid voltage within specified limits across the full generation output range
- High continuous thermal rating — designed for full-load continuous duty, not cyclic or intermittent operation
- CRGO step-lap core — minimum no-load losses for long-term efficiency at baseload generation duty
- Vapour Phase Dried insulation — maximum dielectric integrity for long-life operation at high voltage stress levels
- Full type-test documentation — test reports, partial discharge records, and factory acceptance test certificates issued with every unit
- Neutral earthing options — solidly earthed, resistance earthed, or unearthed to system protection requirements
Applications
- Thermal power plants — coal, gas, and oil-fired generation step-up
- Hydro power stations — generator step-up transformers
- Combined cycle and open cycle gas turbine (CCGT / OCGT) plants
- Captive power plants in industrial facilities
- Diesel and HFO generator sets for industrial and island grid applications
- Station auxiliary transformers — internal plant LV supply
- Independent Power Producers (IPPs) — grid interface transformers
Specify Your Generator Transformer.
Share your generator rating (MVA, MW, power factor), generator terminal voltage, HV grid voltage, and cooling preference — we will produce a full technical specification and commercial proposal.
