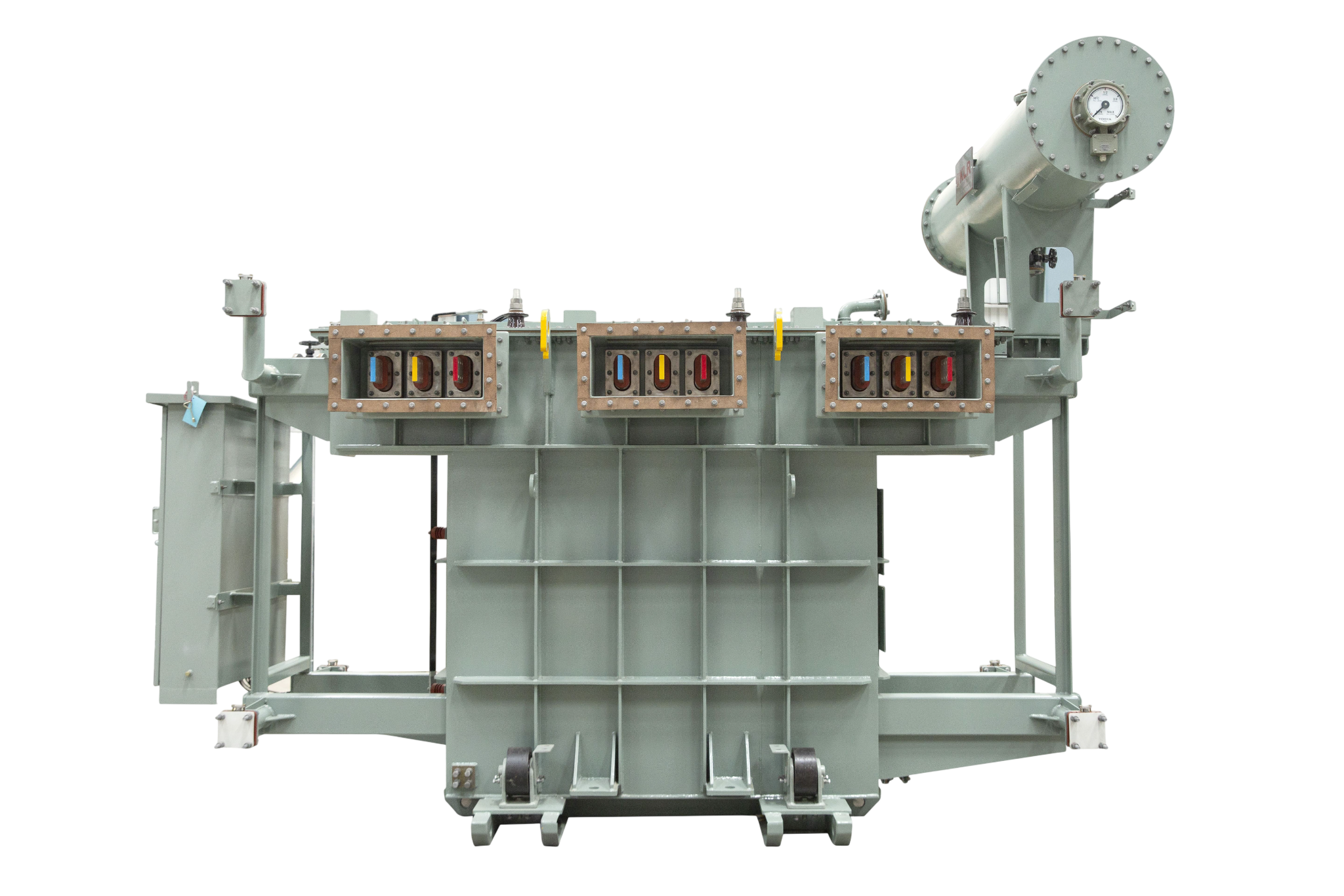

Wind Power Transformers Built for Cyclic Load and Remote Conditions.
Compact, IEC-compliant wind power transformers up to 6.5 MVA, 33 kV. Engineered for where the wind blows.
Product Overview
Designed for Where the Wind Blows. Not Where It's Convenient.
Wind power generation presents unique operating challenges, including cyclic loading, fluctuating power output, vibration, temperature variations, humidity, and remote installation locations. Transformers used in wind energy applications must deliver reliable performance under these demanding conditions while ensuring maximum turbine availability and minimal maintenance requirements.
Technical Specifications
- Capacity range: Up to 6.5 MVAMVA
- Voltage class: Up to 33 kV
- Insulation System: Class A & Class B Oil-Impregnated Paper
- Cooling: ONAN / ONAF
- Tank Design: Corrugated Sealed Tank or Conventional Radiator Type
- Standards: IEC, IS, ANSI, IEEE
- Winding Material: Electrolytic Grade Copper or Aluminium
- Winding Type: Foil / Disc / Helical / Layer
- Vector Group: Dyn11 / YNd1 / Other Vector Groups on Request
- Insulation Levels (kVp): Up to 170 kVp (As per Voltage Class and Applicable Standards)
- Tap Changer: Off-Circuit Tap Changer On-Load Tap Changer (In-Tank or External)
- Frequency: 50 Hz / 60 Hz
- Testing: Complete Routine Tests as per IS, IEC, ANSI, IEEE. Type Tests on request.
Key Features
- Thermal and insulation system sized for variable wind generation profile, not constant rated load, cyclic load optimised design
- Tower-base and nacelle variants designed within turbine structural constraints Compact footprint
- IP-rated enclosures for moisture, dust, and coastal salt-air environments Enhanced ingress protection
- Efficiency optimised across the full generation range, not just rated output Low partial-load losses
- Meets all wind farm developer and utility interconnection requirements IEC 60076 and grid code compliance
- oil sampling access, pressure relief, and monitoring Points positioned for restricted-access sites Long-interval maintenance design
Applications
- Utility-scale onshore wind farms — step-up at turbine level
- IPP wind projects — tower-base or nacelle transformer replacement or new supply
- EPC contractors for wind energy infrastructure
- State and private wind energy developers
- Wind + storage hybrid projects
- Grid interconnection points for wind farm collector systems
Specify Your Wind Power Transformer.
Share your turbine rating, installation type (tower-base or nacelle), and grid connection voltage — we will provide a technically specified proposal.
